ATMOS KC 45 S coal gasifier 45 kW – high-performance boiler for brown coal

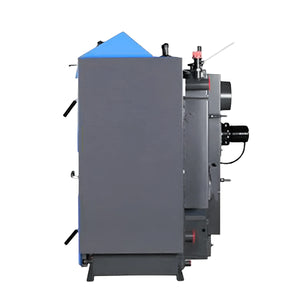

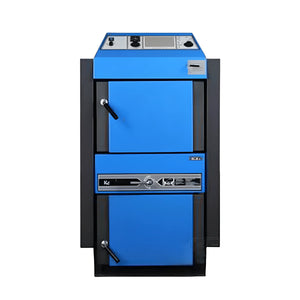

ATMOS KC 45 S – coal gasifier 45 kW

Product description

The ATMOS KC 45 S is the most powerful model in the KC series and is designed for large buildings and commercial applications. Despite its high performance, the boiler achieves low emission levels and meets Ecodesign and BImSchV Stage II standards.

Highlights

• 45 kW heating output

• Large fuel volume (125 l)

• Exhaust fan with closed impeller

• Robust industrial design

• EN 303-5 Class 4

Areas of application

Suitable for:

• Large residential complexes

• Business & agriculture

• Heating systems with buffer storage tanks

Not suitable for:

• Small boiler rooms

• Installations without sufficient chimney draft

Technical specifications (excerpt)

• Rated power: 45 kW

• Efficiency: 85.2%

• Fuel volume: 125 l

• Flue pipe connection: Ø 150/152 mm

• Dimensions (H × W × D): 1435 × 675 × 858 mm

• Weight: 397 kg

• Water capacity: 70 l

• Chimney draft: 25 Pa

• Boiler class: 4

Scope of delivery

• ATMOS KC 45 S

• Exhaust fan

• Train regulator FR 124

• Cleaning & Ash accessories

• User manual

Conclusion

The ATMOS KC 45 S is a reliable high-performance boiler for demanding solid fuel heating projects.

👉 Order commissioning now, along with the commissioning!
With the "Commissioning by ATMOS" service, you ensure that your boiler is optimally set up and that all technical requirements are met.

Further information on the process, requirements and services can be found in our article on [ATMOS commissioning].
