Sales nipple for soldering

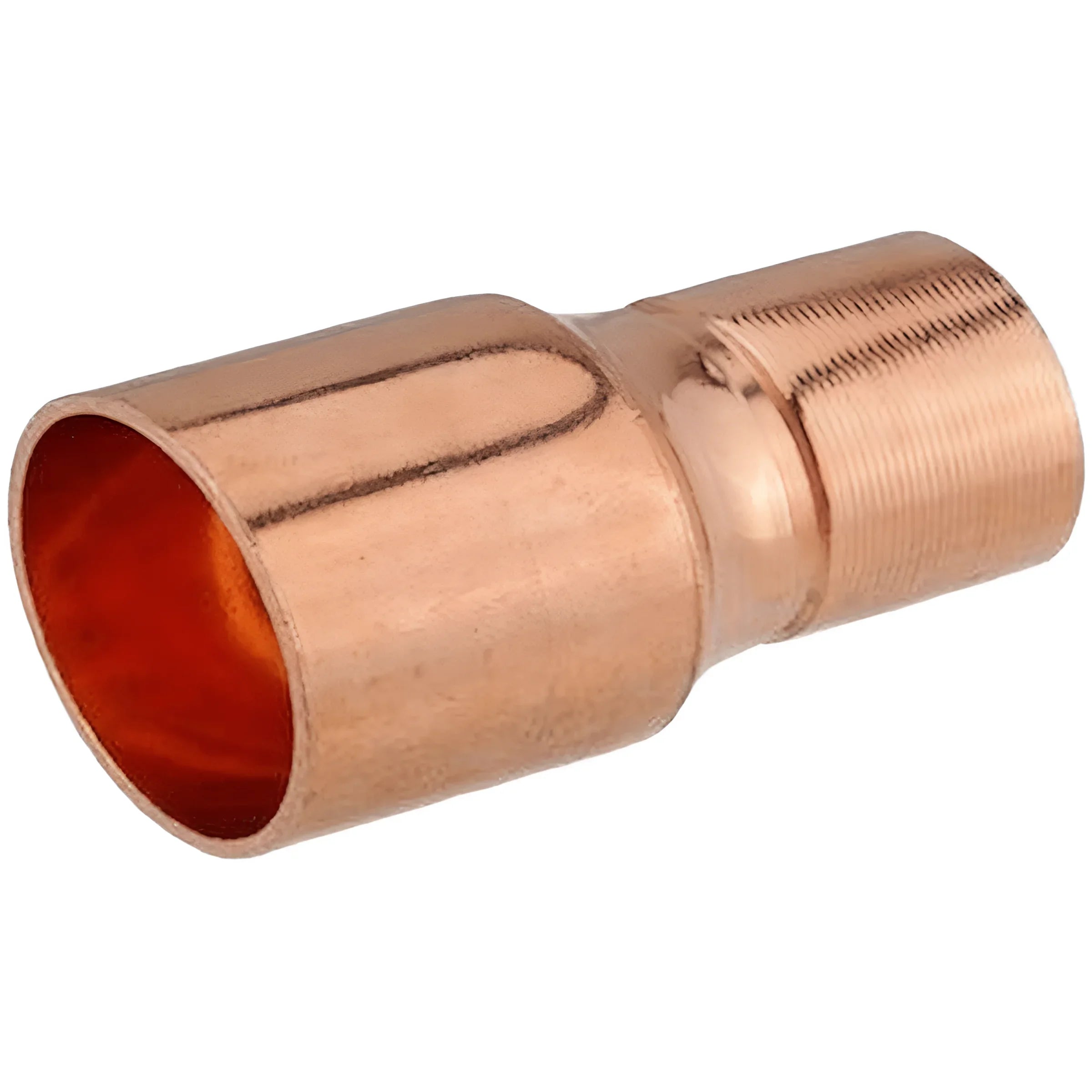

Copper heel nipple for soldering – High-quality fitting made of copper

Product description

The copper solder nipple impresses with its first-class workmanship and long service life. This fitting was specially developed to ensure a permanent and secure connection of copper pipes.

Made of high-quality copper, it offers not only excellent conductivity but also high resistance to temperature and pressure loads. This makes it ideal for modern installation systems.

Areas of application

The socket nipple is ideal for applications in drinking water installations, heating systems, compressed air systems, and cooling systems. Thanks to its versatile application possibilities, the product is ideal for both professional use and DIY enthusiasts.

Whether in private households or in commercial facilities – the copper heel nipple guarantees quick, easy and safe processing that is convincing in every situation.

Technical details and approvals

The fitting complies with the requirements of DVGW worksheet GW 8 and the extended quality and testing specifications with DVGW test mark DV - 7411 AO 2955. It is designed for maximum operating pressures of 25 bar (up to +30°C) or 16 bar (up to +110°C).

Additionally, the copper nipple meets the EN 1412: Cu-DHP standard and is approved according to the technical regulations for drinking water installations (UNI EN 806:2008 and UNI 9182:2010). These certifications underline the product's high quality and reliability.

Processing instructions

For a proper soldered connection, copper pipes should be cut at right angles using a handy pipe cutter. It is important to carefully remove any burrs and chips afterward.

Thoroughly clean the pipe and fitting at the points to be soldered with a cleaning cloth. Then apply flux to the pipe end, slide the fitting into position, and heat the solder joint with a soft soldering iron until the flux turns silver. Then, evenly distribute the solder and allow the solder joint to cool, ensuring a secure connection.

Advantages

Simple and safe processing, combined with a high-quality selection of materials, makes this copper heel nipple the optimal choice for a wide variety of installations. It is suitable for both professionals and DIY enthusiasts who value reliability.

Thanks to a wide range and tested approvals, you receive a product that meets the highest quality standards and effortlessly meets your technical requirements.
