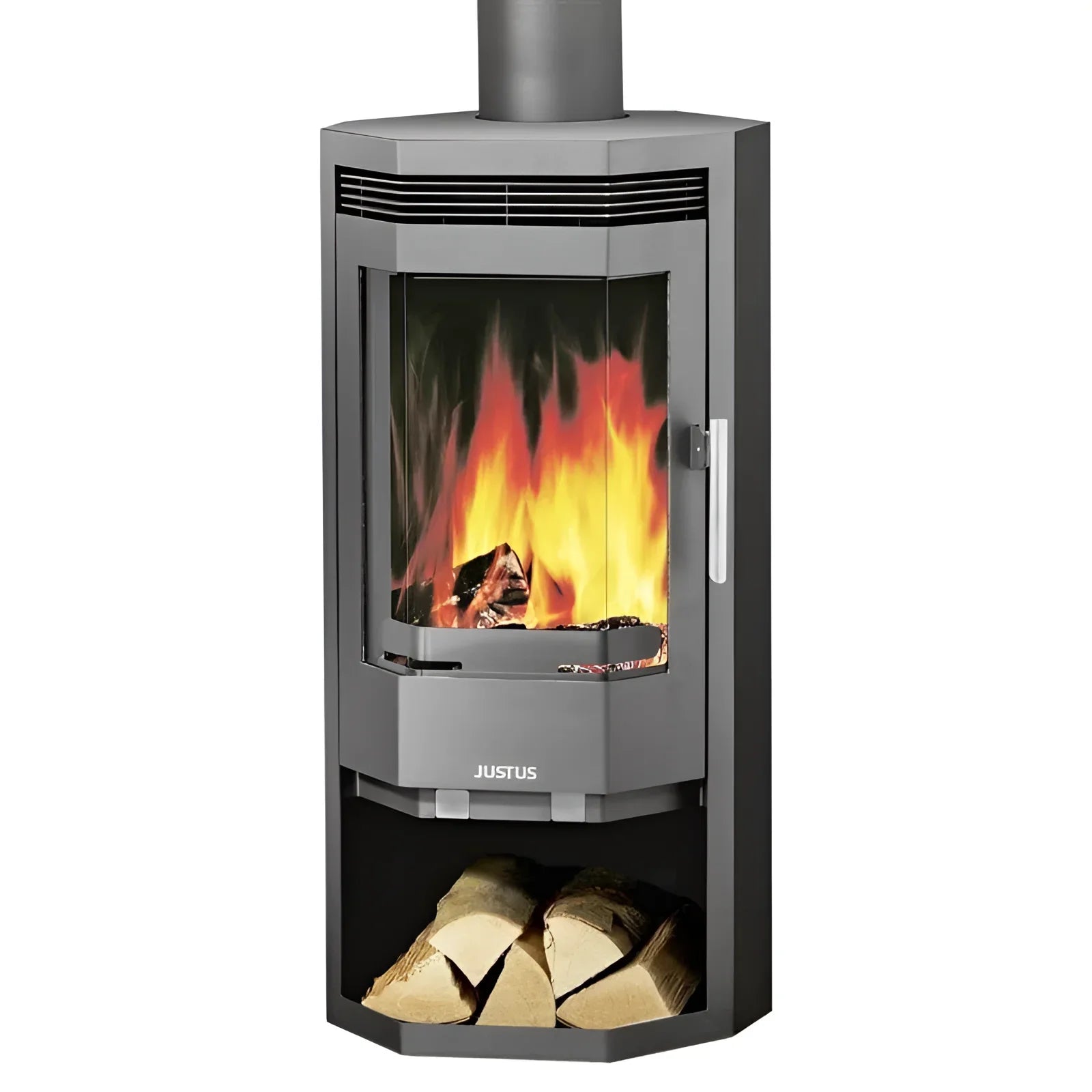

Stove of Justus Usedom 5
Guaranteed safe checkout
Stove of Justus Usedom 5
Justus Usedom 5
The stove is made of high-quality steel, the combustion chamber is made of vermiculite.
The solid cast iron door is very robust and guarantees high tightness and durability.
However, you have the option to further customize the stove. In our shop, you can choose between cast gray steel and black steel versions with various natural stone cladding.
The prism glass gives the Swedish stove an individual touch.
The integrated window cleaning system, a compartment for tidy storage of firewood and a pleasantly temperature-controlled door handle leave nothing to be desired.
Special features of the Usedom 5 fireplace stove:
Justus triple air system
This special system always ensures optimally dosed combustion air.
Continuous operation possible
As a special feature of quality and environmental friendliness, Justus designed the beautiful Justus Usedom 5 fireplace so that it can be operated for 24 hours. Since wood doesn't keep its embers burning as long as coal, it needs to be refueled regularly. Tip: If you want a continuous-burning stove, check out the Justus Usedom 5D.
Connection for external supply air
Instead of using valuable indoor air, outside air can optionally be used for combustion. To do this, the stove must be retrofitted with a connection for external combustion air. This is especially necessary in small or well-sealed rooms where oxygen is scarce.
Approvals for the Usedom 5 stove:
- DIN EN 13240
- BImSchV Stage II
- 15a B-VG for Austria
- VKF for Switzerland
Technical data:
| Rated power (wood): | 5.5 kW |
|---|---|
| Rated power (coal): | 5.0 kW |
| Energy efficiency class: | A |
| Room heating capacity: | approx. 88 m³ |
| Efficiency: | ≥ 80% wood |
| Efficiency: | ≥ 80% coal |
| Average CO content of exhaust gases: | ≤ 1250 mg/m³ wood |
| Average CO content of exhaust gases: | ≤ 1250 mg/m³ coal |
| Fine dust: | ≤ 40 mg/m³ wood |
| Fine dust: | ≤ 40 mg/m³ coal |
| Exhaust gas temperature: | 312 °C |
| Exhaust gas mass flow: | 4.8 g/s |
| Minimum chimney draft: | 12 Pa |
| Steel dimensions (H x W x D): | 95.3 x 43.5 x 37.3 cm |
| Stone dimensions (H x W x D): | 98.2 x 49.2 x 37.3 cm |
| Weight: | 103 kg stone/80 kg steel |
| Flue pipe connection: | 150 mm (top, rear) |
| Connection for external supply air: | 100 mm (rear) |
| Room air-independent operation possible | |
| Windscreen washer available | |
| Side paneling: | Steel and stone |
| Fuel: | Wood and lignite |
| Combustion chamber lining: | Vermiculite |
| Minimum distance to burning.Components: | front 80 cm, side/rear 20 cm |
| Type 1 | suitable for multiple occupancy |
| 24-hour continuous operation possible | |
| Max. log length: | 25 cm |
*Technical changes reserved | Images may vary
