Attack DPX connection package for solid fuel boilers up to 35 kW

Attack DPX connection package up to 35 kW – Versatile connection solution for solid fuel boilers and wood gasifiers

Overview

The Attack DPX connection kit is the ideal solution for optimizing solid fuel boilers and wood gasifiers with an output of up to 35 kW. It combines high efficiency and user-friendly operation and is designed to meet the requirements of modern heating systems.

This comprehensive package ensures your heating system has all the necessary components for reliable and safe operation. The combination of high-quality components guarantees long-lasting and trouble-free use.

Technical equipment

The basic package includes essential components that contribute to optimizing the heating system. Among other things, the set includes a return temperature boost with a setting of 70°C or 72°C, as well as the integration of a high-efficiency pump, a thermometer, and effective insulation.

Further technical details include the boiler safety group, the thermal relief valve (TAS), and various fittings and connectors made of red brass and black components. Also noteworthy are the multiple connection pieces in different sizes, which allow for precise integration into your existing system.

Safety and connection components

The connection kit offers comprehensive safety features. The brass boiler filling and draining valve, a diaphragm safety valve, and dirt traps ensure reliable operation. These components are essential to prevent unexpected pressure surges and potential system failures.

This set also includes various solder and press fittings, guaranteeing a flexible and secure connection of all system components. This significantly simplifies the assembly process and minimizes potential installation errors, thereby sustainably optimizing the operation of the heating system.

Easy integration and assembly

The well-designed combination of various connection and safety components allows for quick and easy integration into existing heating systems. Thanks to high-quality materials and precise dimensions, the individual modules are optimally coordinated.

The Attack DPX connection kit for boilers up to 35 kW is therefore the perfect choice for users who value efficiency, safety, and ease of installation. Its versatility makes it a future-proof investment in the operation of your solid fuel boilers or wood gasifiers.

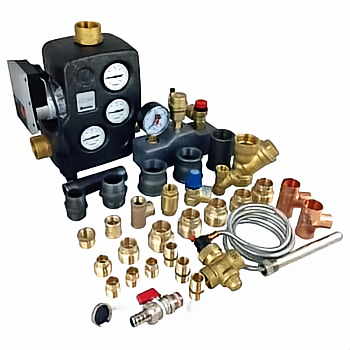

Scope of delivery

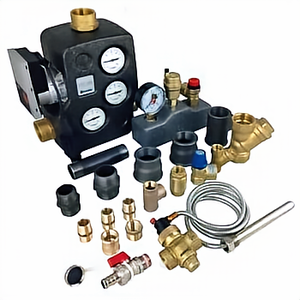

base

• 1 x return temperature increase 70°C or 72°C incl.High-efficiency pump, thermometer and insulation, 1¼"
• 1 x boiler safety group 1"-50kW
• 1 xTAS - thermal relief valve ¾"
• 1 x boiler filling and draining valve ½" brass
• 1 x brass membrane safety valve ½" 6bar
• 3 x red brass double nipples ½"
• 1 x red brass sleeve ½"
• 1 x Red brass red piece ¾"x½"
• 1 x Red brass T-piece ½"
• 2 x double nipples black 1¼"
• 2 x reducing sleeve black 1½"x1¼"
• 1 x black pipe nipple 1"x120mm
• 1 x reducer black 1¼"x1"
• 1 x T-piece black 1¼"
• 1 x black angle fitting 1¼" 90° i/a
• 1 x Brass check valve ½"
• 1 x Mudguard 1¼" Brass
• 1 x Mudguard ½" Brass

plus solder fittings

• 1 x T-piece 28mm
• 1 x T-piece 28x22x28mm
• 3 x heel nipples 15x½"
• 1 x heel nipple 15x¾"
• 1 x heel nipple 22x1"
• 5 x heel nipples 28x1¼"

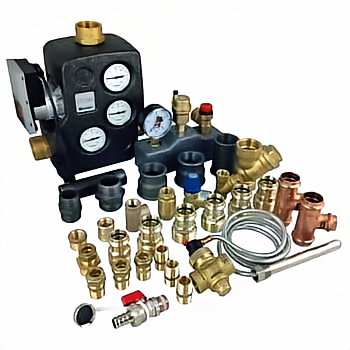

plus press fittings:

• 1 x Profipress copper T-piece 28mm
• 1 x Profipress copper T-piece 28x22x28mm
• 3 x Profipress red brass adapter piece 15x½" male thread
• 1 x Profipress red brass transfer piece 15x¾" male thread
• 1 x Profipress red brass transfer piece 22x1" AG
• 5 x Profipress red brass transfer piece 28x1¼" male thread
