Stratified storage tank without heat exchanger
Stratified storage tank without heat exchanger with layer separation plate, including insulation
Structure and functionality:
A so-called Stratified storage is a device that stores heat.
As a heat storage component, it is a component of heating technology that significantly increases the efficiency of a heating system.
Because it stores excess heat and feeds it into the heating system.
This means that maximum heat is used and losses are lower than with a heating system without a stratified storage tank.
This is how the Stratified storage Without a heat exchanger, the stored heat energy is even more effective than a combination or buffer storage tank in standard design and can therefore also be dimensioned smaller than the two aforementioned storage types.
If a solar thermal system is part of the heating system, the Stratified storage Incidentally, this is absolutely necessary to integrate them in the first place. Water serves as the storage medium in the stratified storage tank. This is why the stratified storage tank is also called a hot water tank.
!! No shipping charges within Germany!!
Technical data: Stratified storage tank without heat exchanger

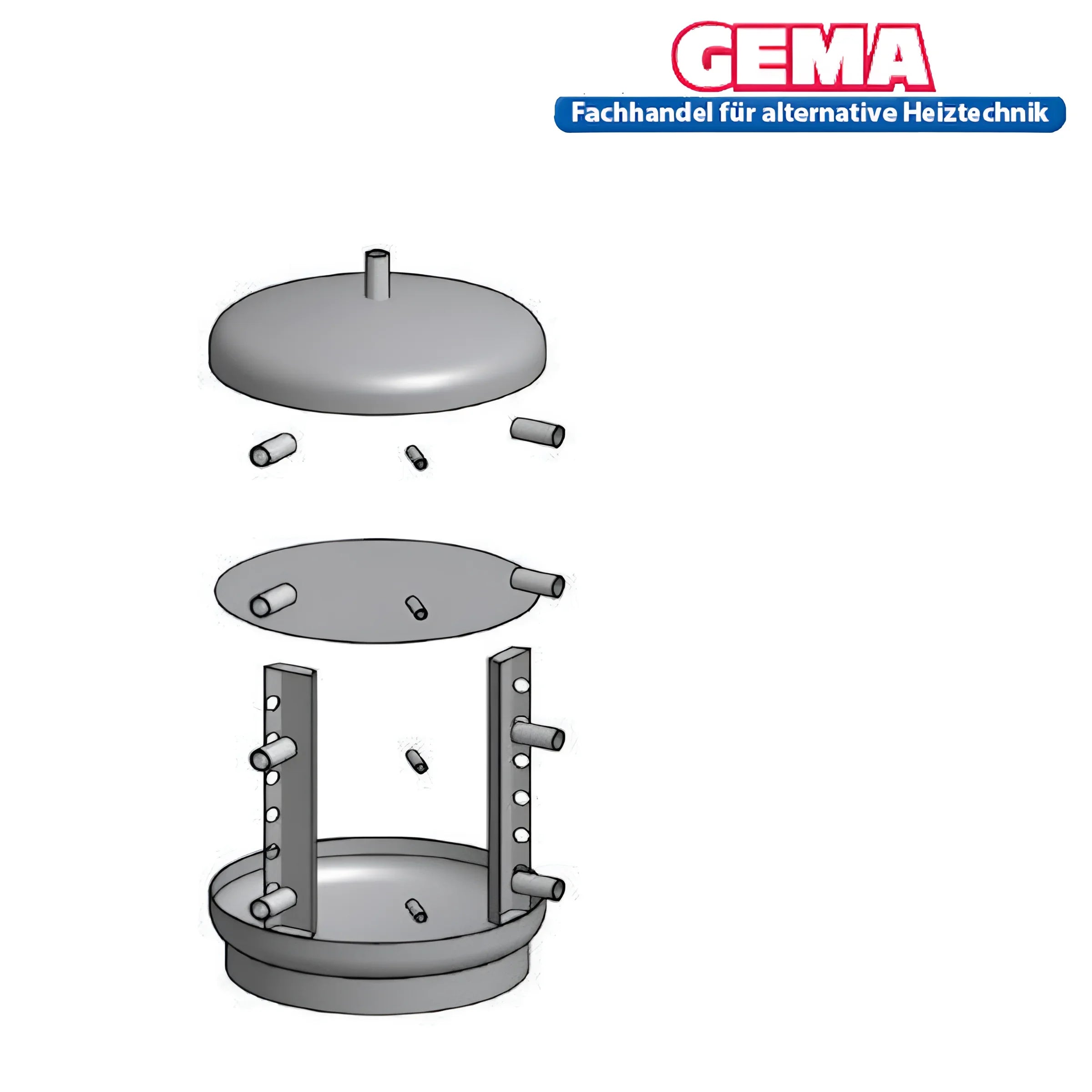

| PLC | 600 | 800 | 1,000 | 1,500 | 2,000 | |
|---|---|---|---|---|---|---|
| Net content (without WT) | liter | 580 | 785 | 962 | 1485 | 1980 |
| Diameter without insulation | mm | 700 | 790 | 790 | 1,000 | 1,200 |
| Diameter with super PU insulation | mm | 1,000 | 1,100 | 1,100 | - | - |
| Energy efficiency class PU insulation | A | A | A | - | - | |
| Heat loss (with insulation) | watt | 63 | 70 | 75 | - | - |
| Diameter with PU-Ökoline insulation | mm | 900 | 990 | 990 | 1,200 | 1,400 |
| Energy efficiency class PU-Ökoline insulation | B | B | B | B | B | |
| Heat loss (with insulation) | watt | 88 | 97 | 105 | 122 | 136 |
| Diameter with STS fleece insulation | mm | 900 | 990 | 990 | 1,200 | 1,400 |
| Energy efficiency class with STS fleece insulation | C | C | C | C | C | |
| Heat loss (with insulation) | watt | 104 | 117 | 140 | 171 | 190 |
| Height with insulation | mm | 1,680 | 1,720 | 2,050 | 2,080 | 2,100 |
| Tilting dimension without insulation | mm | 1,680 | 1,740 | 2,080 | 2,130 | 2.150 |
| Loading/unloading connections | Customs | 8 x 1 1/2" IG | 8 x 1 1/2" IG | 8 x 1 1/2" IG | 8 x 1 1/2" IG | 8 x 1 1/2" IG |
| Sensor/controller connections | Customs | 4 x 1/2" IG | 4 x 1/2" IG | 4 x 1/2" IG | 4 x 1/2" IG | 4 x 1/2" IG |
| Ventilation (IG) | Customs | 1 1/4" IG | 1 1/4" IG | 1 1/4" IG | 1 1/4" IG | 1 1/4" IG |
| E-cartridge connection | Customs | 2 x 1 1/2" | 2 x 1 1/2" | 2 x 1 1/2" | 2 x 1 1/2" | 2 x 1 1/2" |
| Operating pressure container max. | bear | 5 | 5 | 5 | 3 | 3 |
| Operating temperature max. | °C | 95 | 95 | 95 | 95 | 95 |
| Weight without insulation | kg | 130 | 170 | 190 | 205 | 230 |
| Dimensions above floor (Image 2) | ||||||
| A | mm | 1,680 | 1,690 | 2,050 | 2,080 | 2,100 |
| B | mm | 1,375 | 1,385 | 1,695 | 1,690 | 1,665 |
| C | mm | 995 | 1,005 | 1,235 | 1,230 | 1,225 |
| D | mm | 615 | 625 | 755 | 770 | 785 |
| E | mm | 235 | 245 | 295 | 310 | 345 |
